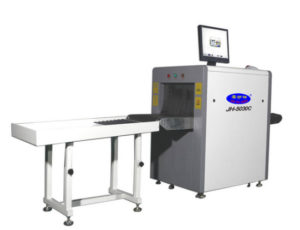

X RAY Baggage Scanner JH 5030C

X RAY Baggage Scanner JH 5030C

About the device:

The X-RAY Baggage Scanner JH 5030C the bags inspection device, Used in airports, malls, and government departments to inspect bags and detect weapons and Contrabands

Device Features:

  1. Voice and visual alert: sound and lighting alert when the condition is achieved

  2. Network port: can be connected in the local network and support to several terminals to check the luggage at the same time

  3. Radiation prevention: X-ray transmission is controlled automatically to avoid error

  4. Easy to use screen control: The screen is collapsible and rotating, and the operator can adjust it according to its needs to reduce wiring

  5. Easy to operate by mouse: The operator does not need a keyboard or table just using the mouse, saving more space

  6. Turn off the control switch: Turn on/off the device needs only one step by turning the power switch, it is simple and does not need complicated steps

  7. The control area can be expanded rapidly and appropriately

  8. Guess self-damage: through automatic guessing of faults and issuing an immediate message to help with maintenance

X-RAY GENERATOR:

  1. X-ray sensor: The detection of diode set images type, 12bit

  2. Screen Display: 17 inches high-resolution LCD display

  3. Color quality: 24-bit real colors

  4. Improve image optimization: Clarify image details to be more accurate

  5. High penetration power: By increasing the brightness of the dark area in the picture to display things clearly

  6. Low penetration strength: increased contrast of low-absorption masses of radiation to increase clarity

  7. Zoom Lens: Works to magnify specific parts

  8. Brightness / Darkness: Increase image brightness / reduce image brightness

  9. Duplicate images: Re-display 20 previous images and process any one of them

  10. Restore the image to the initial state when the carrier stops

  11. Store images: Store any image in the real-time and process it in playback mode

Operating environment:

  • Storage temperature: -20C to 60C

  • Operating temperature: 0C to 45C

  • Relative Humidity: 20 to 95%

  • Power system: 220 VAC (± 10%) 50 ± 3Hz

  • Power loss: 1.0 KW (Max)

  • Noise: 65D>

X-ray Generator:

  1. Direction: vertically to the top

  2. Channel Current: MA 1.2 ~ 0.4 (adjustable)

  3. Voltage: 100 ~ 160 KV (adjustable)

  4. Corner: 80 °Cooling generator / working periods

Multiple power functions:

  1. Multiple colors: organic materials are displayed in orange, inorganic materials are displayed in blue, mixed materials are displayed in green

  2. High energy/low energy: switching between the two types of energy, high energy for metal detecting, low energy for non-metals detecting.

  3. Supplementary function for drugs and explosives: Helps in the detection of hazardous substances such as drugs and explosives

  4. Sound and visual warning: issuing sounds and signals when the condition is achieved

Technical Specifications

Channel size500 W × 300 Hmm
Transmission0.22 m / s
Conveyor maximum load50 kg
Volume Inspection Unit<1.5μGy
Wired stability0.1mm metal line
Breakthrough Metal32MM shield plate
Safety filmfor ISO 1600
Maximum leakage radiation<0.3μGY / H

Technical Specifications

Channel size500 W × 300 Hmm
Transmission0.22 m / s
Conveyor maximum load50 kg
Volume Inspection Unit<1.5μGy
Wired stability0.1mm metal line
Breakthrough Metal32MM shield plate
Safety filmfor ISO 1600
Maximum leakage radiation<0.3μGY / H
